#40 Stainless Steel WK-2 Attachment

This #40 Stainless Steel WK-2 Attachment Connecting Link is manufactured for #40 stainless steel roller chain and fully meets and exceeds ANSI Standards. WK-2 Stainless Steel Attachments are a wide contour bent, two side, two hole attachment that is found in a wide range of applications. We can supply #40 stainless steel roller chain with WK-2 attachments assembled in any configuration needed at a great price and in a short lead time!

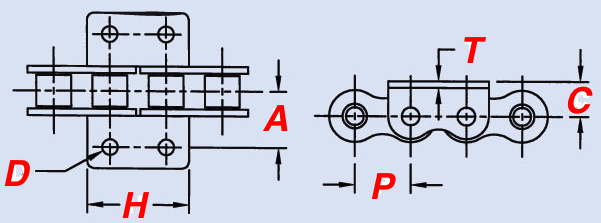

Dimensions:

• ANSI Size: 40SS-WK-2
• Pitch (P): 0.500"
• From Hole C.L To Pin C.L. (C): 0.500"
• Hole Diameter (D): 0.312"
• From Top To Pin C.L. (F): 0.140"
• Extension Width (H): 0.910"
• Thickness (T): 0.058"
