#80 Stainless Steel WM-2 Attachment

This #80 Stainless Steel WM-2 Attachment Connecting Link is manufactured for #80 stainless steel roller chain and fully meets and exceeds ANSI Standards. WM-2 Stainless Steel Attachments are a wide contour straight, two side, two hole attachment that is found in a wide range of applications. We can supply #80 stainless steel roller chain with WM-2 attachments assembled in any configuration needed at a great price and in a short lead time!

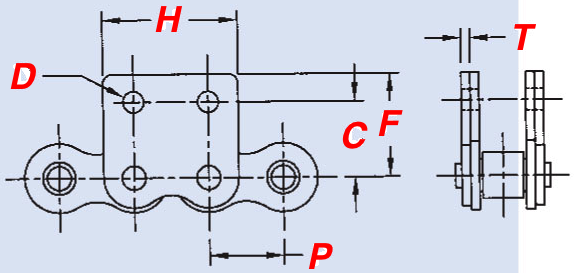

Dimensions:

• ANSI Size: 80SS-WM-2
• Pitch (P): 1.000"
• From Hole C.L To Pin C.L. (C): 0.969"
• Hole Diameter (D): 0.265"
• From Top To Pin C.L. (F): 1.349"
• Extension Width (H): 1.916"
• Thickness (T): 0.125"
