C2040 Stainless Steel A-2 Attachment

This C2040 Stainless Steel A-2 Attachment Connecting Link is manufactured for C2040 stainless steel roller chain and fully meets and exceeds ANSI Standards. A-2 Stainless Steel Attachments are a standard bent, one side, two hole attachment that is found in a wide range of applications. We can supply C2040 stainless steel roller chain with A-2 attachments assembled in any configuration needed at a great price and in a short lead time!

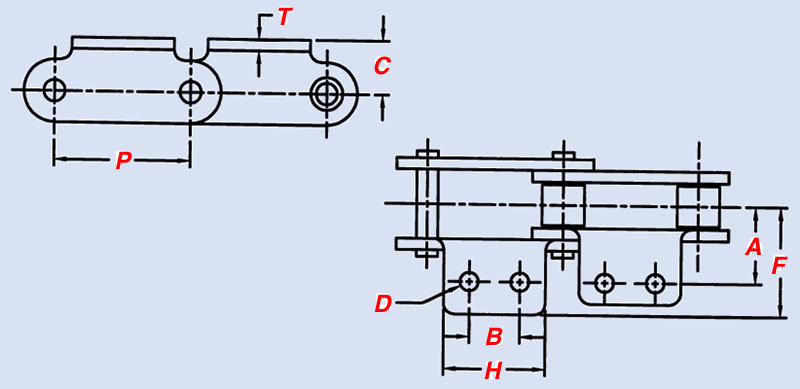

Dimensions:

• ANSI Size: C2040SS-A-2
• Pitch (P): 1.000"
• From Hole C.L. To Chan C.L. (A): 0.500"
• From Hole C.L. To Hole C.L. (B): 0.375"
• From Top To Pin C.L. (C): 0.359"
• Hole Diameter (D): 0.140"
• From End To Chain C.L. (F): 0.742"
• Extension Width (H): 0.750"
• Thickness (T): 0.058"
