C2040 Stainless Steel Hollow Pin Roller Chain

This C2040 stainless steel hollow pin roller chain offers a long working life, durability, and corrosion resistance. C2040 stainless steel hollow pin roller chain is manufactured entirely out of 304-Grade stainless steel making it able to work in harsh conditions and a wide range of temperatures. We offer C2040 stainless steel hollow pin roller chain in 10ft boxes, 50ft reels, and specific lengths per request. Additionally, this chain is normally in stock and we offer the C2040 stainless steel sprockets! For pricing and availability please contact us.

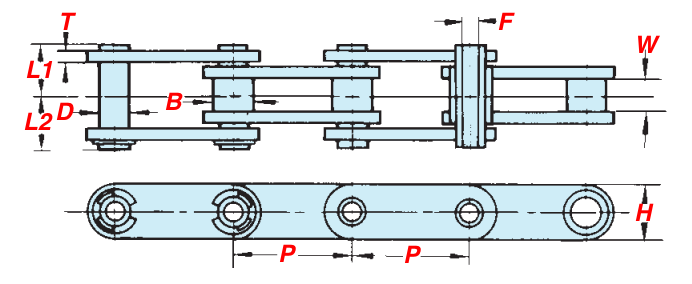

Dimensions:

• Pitch (P): 1.000"
• Width Between Inner Link Plates (W): 0.312"
• Bushing Diameter (B): 0.312"
• Pin Outside Diameter (D): 0.224"
• Pin Inside Diameter (F): 0.157"
• Pin Length (L1): 0.315"
• Pin Length (L2): 0.374"
• Link Plate Thickness (T): 0.059"
• Link Plate Height (H): 0.472"
• Weight Per Ft: 0.31 lbs

Phone: (407) 347-3519
Email: [email protected]
